RD-F - Wyrzutnia pionowa
RD-F - Wyrzutnia dachowa pionowa
Wyrzutnia dachowa z tworzyw termoplastycznych przeznaczona do montażu kołnierzowego na kanałach wentylacyjnych okrągłych.
Wykonanie:
- pionowy wyrzut powietrza
- formowana na gorąco
- zakres średnic od 110mm do 630mm
- minimalna grubość 3 mm lub według normy DIN 4741
- odpływ skroplin

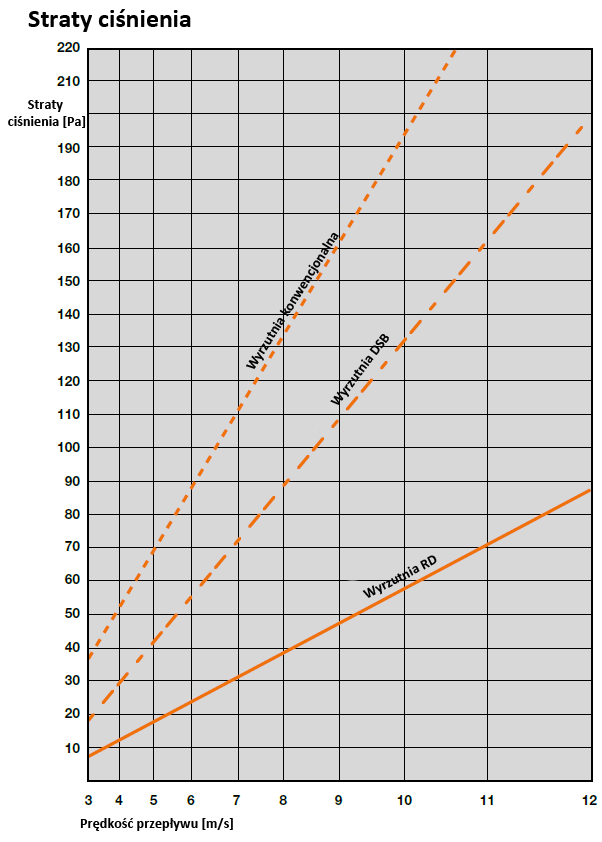

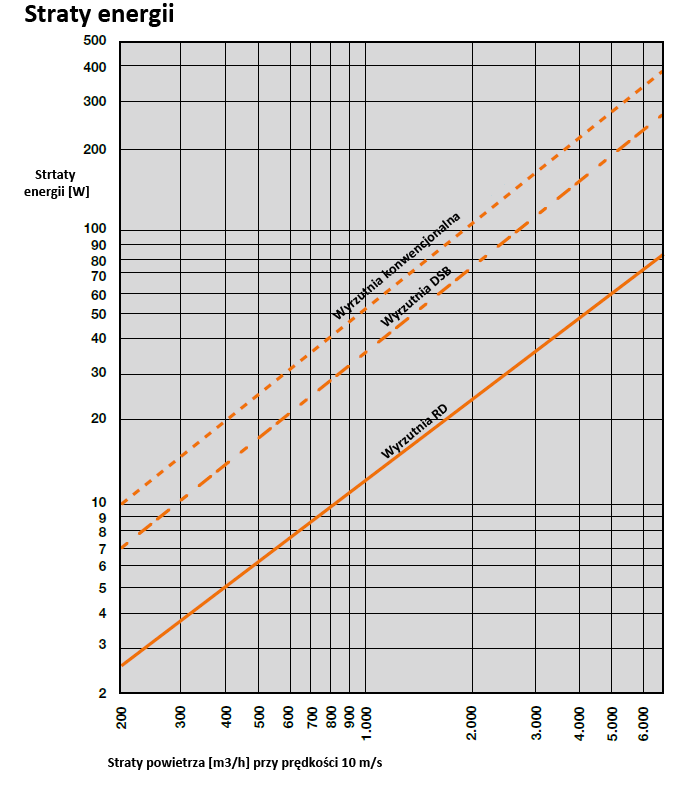

- niski opór (94 Pa) przy prędkości 10m/sek. powietrza wylotowego (VDI 2051)
- połączenie kołnierzowe
Temperatura stosowania:
Tr [°C] jak dla materiału
Temperatura pracy:
Tmax. [°C] jak dla materiału
Ciśnienie pracy:
Pmax. [Pa] jak dla materiału
Kolor:
jak materiał

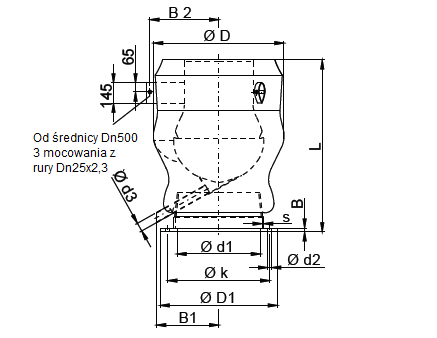

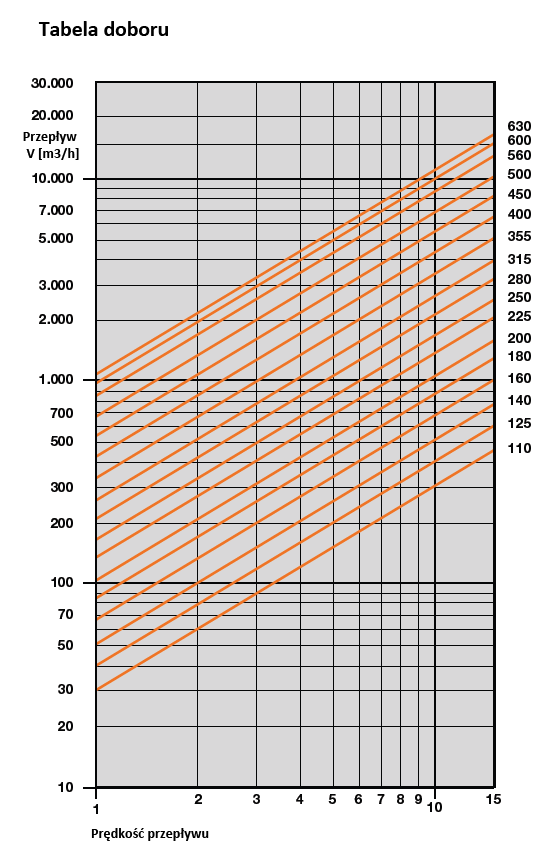

Wymiarowanie:
Wyrzutnia RD [x] - F - [d]
[x] - typ materiału
[d] - średnica kanału wentylacyjnego w mm
Uwagi:
Wyrzutnie dostępne również z przyłączem mufowym.
Dodatkowa siatka ochrona VS jako opcja.
Wersje materiałowe:
- PVC (RAL 7011),
- PPS (szary RAL 7037)
- PP (RAL7032),
- PE (czarny),
- PPs-el (czarny),
- PVDF (naturalny),
- PVC-UV (biały),
Oznaczanie:
| Typ | RD1-F | RD2-F | RD3-F | RD4-F | RD5-F | RD6-F | RD9-F |
|---|---|---|---|---|---|---|---|
| Materiał | PVC | PPs | PP | PE | PPs-el | PVDF | PVC-UV |
| d [mm] | PVC / PVC-C / PVC-UV | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D [mm] |
L [mm] |
s [mm] |
B1 [mm] |
B2 [mm] |
d3 [mm] |
D1 [mm] |
B [mm] |
k [mm] |
d1 [mm] |
d2 [mm] |
Ilość d2 [mm] |
m [kg] |
|
| 0110 | 170 | 250 | 3,0 | 80 | - | 20 | 170 | 8 | 150 | 111 | 7 | 4 | 0,7 |
| 0125 | 185 | 275 | 3,0 | 90 | - | 20 | 185 | 8 | 165 | 126 | 7 | 8 | 0,8 |
| 0140 | 200 | 305 | 3,0 | 100 | - | 20 | 200 | 8 | 175 | 141 | 7 | 8 | 1,0 |
| 0160 | 230 | 340 | 3,0 | 115 | - | 25 | 230 | 8 | 200 | 161 | 7 | 8 | 1,3 |
| 0180 | 250 | 390 | 3,0 | 130 | - | 25 | 250 | 8 | 220 | 181 | 7 | 8 | 1,6 |
| 0200 | 270 | 425 | 3,0 | 150 | - | 25 | 270 | 8 | 240 | 201 | 7 | 8 | 1,9 |
| 0225 | 295 | 470 | 3,0 | 156 | - | 25 | 295 | 8 | 265 | 226 | 7 | 8 | 2,4 |
| 0250 | 320 | 530 | 3,0 | 185 | - | 25 | 320 | 10 | 290 | 251 | 7 | 12 | 3,0 |
| 0280 | 360 | 575 | 3,0 | 205 | - | 25 | 360 | 10 | 325 | 281 | 9 | 12 | 3,7 |
| 0315 | 395 | 635 | 3,0 | 235 | - | 32 | 395 | 10 | 350 | 316 | 9 | 12 | 4,6 |
| 0355 | 435 | 710 | 4,0 | 260 | - | 32 | 435 | 10 | 400 | 356 | 9 | 12 | 7,3 |
| 0400 | 595 | 815 | 4,0 | 290 | - | 40 | 480 | 10 | 445 | 401 | 9 | 16 | 9,2 |
| 0450 | 595 | 895 | 6,0 | 290 | - | 40 | 530 | 10 | 495 | 438 | 9 | 16 | 10,7 |
| 0500 | 760 | 1020 | 6,0 | 370 | 410 | 50 | 580 | 10 | 545 | 488 | 9 | 20 | 19,7 |
| 0560 | 860 | 1130 | 6,0 | 405 | 455 | 50 | 700 | 12 | 660 | 548 | 11 | 24 | 17,4 |
| 0600 | 935 | 1205 | 6,0 | 450 | 490 | 63 | 730 | 12 | 690 | 588 | 11 | 24 | 27,7 |
| 0630 | 935 | 1260 | 6,0 | 450 | 490 | 63 | 730 | 12 | 700 | 618 | 11 | 24 | 21,1 |
| d [mm] | PPs / PP / PE / PPs-el / PVDF | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D [mm] |
L [mm] |
s [mm] |
B1 [mm] |
B2 [mm] |
d3 [mm] |
D1 [mm] |
B [mm] |
k [mm] |
d1 [mm] |
d2 [mm] |
Ilość d2 [mm] |
m [kg] |
|
| 0110 | 170 | 250 | 3,0 | 80 | - | 20 | 170 | 8 | 150 | 111 | 7 | 4 | 0,7 |
| 0125 | 185 | 275 | 3,0 | 90 | - | 20 | 185 | 8 | 165 | 126 | 7 | 8 | 0,8 |
| 0140 | 200 | 305 | 3,0 | 100 | - | 20 | 200 | 8 | 175 | 141 | 7 | 8 | 1,0 |
| 0160 | 230 | 340 | 3,0 | 115 | - | 25 | 230 | 8 | 200 | 161 | 7 | 8 | 1,3 |
| 0180 | 250 | 390 | 3,0 | 130 | - | 25 | 250 | 8 | 220 | 181 | 7 | 8 | 1,6 |
| 0200 | 270 | 425 | 3,0 | 150 | - | 25 | 270 | 8 | 240 | 201 | 7 | 8 | 1,9 |
| 0225 | 295 | 470 | 4,0 | 156 | - | 25 | 295 | 8 | 265 | 226 | 7 | 8 | 2,4 |
| 0250 | 320 | 530 | 4,0 | 185 | - | 25 | 320 | 10 | 290 | 251 | 7 | 12 | 3,0 |
| 0280 | 360 | 575 | 4,0 | 205 | - | 25 | 360 | 10 | 325 | 281 | 9 | 12 | 3,7 |
| 0315 | 395 | 635 | 5,0 | 235 | - | 32 | 395 | 10 | 350 | 316 | 9 | 12 | 4,6 |
| 0355 | 435 | 710 | 5,0 | 260 | - | 32 | 435 | 10 | 400 | 356 | 9 | 12 | 7,3 |
| 0400 | 595 | 815 | 6,0 | 290 | - | 40 | 480 | 10 | 445 | 401 | 9 | 16 | 9,2 |
| 0450 | 595 | 895 | 6,0 | 290 | - | 40 | 530 | 10 | 495 | 438 | 9 | 16 | 10,7 |
| 0500 | 760 | 1020 | 6,0 | 370 | 410 | 50 | 580 | 10 | 545 | 488 | 9 | 20 | 19,7 |
| 0560 | 860 | 1130 | 6,0 | 405 | 455 | 50 | 700 | 12 | 660 | 548 | 11 | 24 | 17,4 |
| 0600 | 935 | 1205 | 6,0 | 450 | 490 | 63 | 730 | 12 | 690 | 588 | 11 | 24 | 27,7 |
| 0630 | 935 | 1260 | 6,0 | 450 | 490 | 63 | 730 | 12 | 700 | 618 | 11 | 24 | 21,1 |
